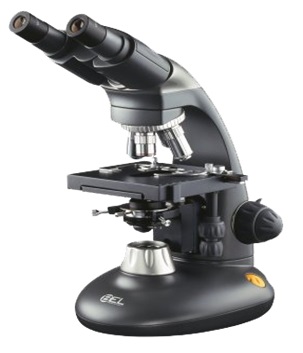

BINOCULAR BIOLOGICAL MICROSCOPE (BIO2B)
Spesifikasi :
▪ Application : Laboratory and Education
▪ Optical System : Standard DIN 160mm system
▪ Illumination : Built in transmitted Koehler illumination with field
diaphragm 6V 30W Halogen bulb
▪ Eyepieces : Wide field WF10x/18mm
▪ Objectives : AC ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65;
100x/1.25 (oil immersion)
: PL ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65;
100x/1.25 (oil immersion)
▪ Focusing : Macrometric and micrometric coaxial knobs on both
sides (0,002mm)
▪ Observation tube : Binocular
: Tube inclination 30° tilted, 360° rotable
: Interpupillary distance adjustment 55-75mm
▪ Stage : 135 x 125mm. Excrution XY: 75X35mm (division 0,1mm)
: Coaxial knobs on right side
▪ Condenser : Abbe condenser, N.A 1.25. Equipped with diaphram and
and filter seat. Height and centering are adjustable
▪ Accessories : Protection Cover
: Oil Bottle
: Certificate of origin for Chamber of Commerce
: Manual Book
