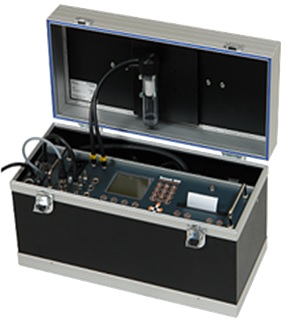

Specification :
| ■ | Dimensions (W x H x D) |
243 x 130 x 60mm |
| 257 x 130 x 60mm (with gas connectors) | ||
| ■ | Weight |
6.2 ÷ 7.2kg |
| ■ | Casing material |
Textile (polyester) |
| ■ | Operating conditions |
T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing) |
| ■ | Storing temperature |
0°C ÷ +55°C |
| ■ | Power supply: input | max power consumption |
90 ÷ 240VAC | 70W |
| ■ | Battery: type | work time | charging time |
Lead-acid, rechargeable 12V / 2.2Ah | 7h | 14h |
| ■ | Data memory: size | number of results |
32kB | 30 reports + 10 banks (1024 sets of data) |
| ■ | Display |
Graphical LCD 128x128, with variable contrast and backlighting |
| ■ | Printer |
High-speed dot matrix, graphic printer for 57mm normal paper |
| ■ | Analogue outputs |
Two current (0/4mA ÷ 20mA) |
| ■ | Gas pump | gas flow |
Diaphragm, max 2l/min (with automatic flow control) | 90l/h (1.5l/min) |
| ■ | Purging pump for CO sensor (optional) |
Diaphragm, max 1.5l/min |
| ■ | Communication interface with PC computer |
RS-232C |
| ■ | Gas filtering |
In-line filter included in the gas probe hose |
| Built-in input filter with water-trap and replaceable insert |
| Measurements of gas components | |
|
The analyser can be equipped with sensors from below list
|
|
| O2 – (EC, PP) |
20.95%, 25%, 100% |
| CO – (EC) |
20 000ppm, 10% |
| CO – (EC, H2 comp) |
2000ppm |
| CO – (NDIR) |
10%, 50%, 100% |
| CO2 – (NDIR) |
25%, 50%, 100% |
| CxHy – (NDIR) |
5%, 25%, 100% |
| NO – (EC) |
5000ppm |
| NO2 – (EC) |
1000ppm |
| SO2 – (EC) |
5000ppm |
| H2S – (EC) |
1000ppm |
| H2 – (EC) |
2000ppm, 20 000ppm |
| NH3 – (EC) |
1000ppm |
| CL2 – (EC) |
250ppm |
| HCl – (EC) |
50ppm |
| CL2 - (EC) |
250ppm |
| HCl - (EC) |
50ppm |
|
EC - Electrochemical sensor
|
|
| PP – partial pressure | |
| NDIR – non dispersive Infrared sensor |
Hubungi :
Freza - 0812 1226 5508
