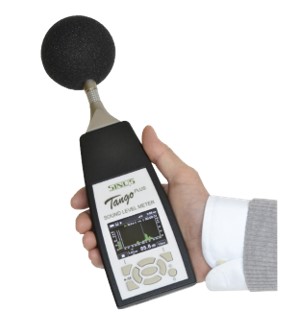

| Spesifikasi alat : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ▪ |
Accuracy |
|
|
: |
Class 1 according to IEC 61672 and IEC 61260 |
|
|
|
|
| ▪ |
Type approval |
|
: |
PTB approval applied for Meas. values |
|
|
|
|
|
| |
|
|
|
|
|
: |
Sound pressure level LAF, LAS, LCF, LCS |
|
|
|
|
|
| |
|
|
|
|
|
: |
1/1 and 1/3 octave spectra (A, C, Z) |
|
|
|
|
|
|
| |
|
|
|
|
|
: |
Maximum sound level LAFmax, LASmax, LCFmax, LAImax |
|
|
| |
|
|
|
|
|
: |
Minimum sound level LAFmin, LASmin, LCFmin |
|
|
|
|
| |
|
|
|
|
|
: |
Equivalent sound pressure level LAeq, LCeq |
|
|
|
|
| |
|
|
|
|
|
: |
Peak value Lcpeak, Sound Dose LAE |
|
|
|
|
|
|
|
|
|
|
|
|
: |
Taktmaximal level LAFT, LAFTeq |
|
|
|
|
|
|
|
| |
|
|
|
|
|
: |
3x Statistical values LAFn (freely selectable) |
|
|
|
|
| |
|
|
|
|
|
: |
3x LCpeak_exceedance (freely selectable) |
|
|
|
|
|
| |
|
|
|
|
|
: |
LCeq - LAeq, LAFTeq - LAeq |
|
|
|
|
|
|
|
|
| ▪ |
Freq. weightings |
|
: |
A + C |
|
|
|
|
|
|
|
|
|
|
|
|
| ▪ |
Time weightings |
|
: |
Fast, Slow, Impulse, Peak |
|
|
|
|
|
|
|
|
| ▪ |
Ranges |
|
|
|
: |
25 to 140 dB (LAeq), 60 to 143 dB (Lcpeak) |
|
|
|
|
|
| ▪ |
Resolution |
|
|
: |
0.1 dB |
|
|
|
|
|
|
|
|
|
|
|
|
| ▪ |
Display |
|
|
|
: |
color TFT 320 x 240 |
|
|
|
|
|
|
|
|
|
| ▪ |
Microphone |
|
|
: |
1/2" microphone MK255, 50 mV/Pa |
|
|
|
|
|
|
|
Connector |
|
|
: |
LEMO7 1B (for Micro Extension Cable) |
|
|
|
|
|
|
| |
|
|
|
|
|
: |
RS232 special connector (for printer) |
|
|
|
|
|
|
| ▪ |
Calibration |
|
|
: |
Automatic with external 94 dB calibrator |
|
|
|
|
|
| ▪ |
Interface |
|
|
: |
USB 2.0, RS232 printer port |
|
|
|
|
|
|
|
|
| ▪ |
Batteries |
|
|
: |
2x AA (1.2 - 1.5V) Operating time > 40h |
|
|
|
|
|
| ▪ |
Dimensions |
|
|
: |
190x70x32mm /Weight 250 g (including batteries) |
|
|
|
| ▪ |
Scope of delivery |
|
: |
Sound level meter, windscreen and sound calibrator |
|
|
| |
|
|
|
|
|
: |
1.5m USB interface cable |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
: |
mains power supply |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
: |
Tango-Utilities software |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
: |
User Manual and Carrying case |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
