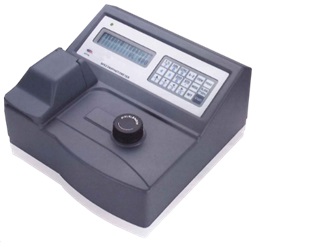

(PD303 S)
Spesifikasi :
▪ Wavelength Range : 340 - 1000 nm
▪ Wavelength Width : 8nm in entire region
▪ Wavelength Accuracy : ±2nm at 365, 585 and 879nm
▪ Wavelength Scale : 1nm scale
▪ Optic Path Length : 10mm
▪ Spectroscope : Diffraction grating,
number of grooves 1200 lines/nm
▪ Stray Radiant Energy : ＜0.5%T typical at 400nm
▪ Display : LCD Display
▪ Photometric Range :- 0.200 to 3.000ABS
: 0.0 to 200%T
: 0.000 to 2000C
▪ Photometric accuracy : ±2%T
▪ Measuring Mode : 1. Normal Mode
: 2. Timer Mode-Measuring Interval 1-60 sec
: Time limit 5960 sec
▪ Detector : High Sensitivity silicon photocell
▪ Light Source : Bright intensity lamp
▪ Sample Volume : 1.0 ml(Minimum)
▪ Sample Container : Square cuvette 10x10x45(L) mm
: Round cuvette 10(D)x12(OD)x105(L)mm
▪ Printer interface : Centronic (D-SUB 25pins)
▪ Serial interface : RS-232C
▪ Power Requirements : 100 - 240 VAC, 50/60 Hz, 15W
▪ Dimensions : 270 (W) ×285 (D) ×155 (H) nm
▪ Weight : Net 4.8 kg (Main body)
Standard Accessories
▪ Square cuvette 2 pcs
▪ Round Cuvette 10 pcs
▪ Cuvette Holder 1 pcs
▪ Power Code 1 pcs
▪ Vinyl Dust Cover 1 pcs
▪ Operation Manual 1 copy
