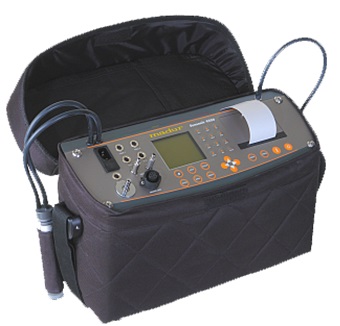

PORTABLE GAS ANALYZER (S-4500)
Specification : |
|
Dimensions (W x H x D) |
470 x 310 x 160mm |
Weight |
12.0÷12.8kg |
Casing material |
Aluminium padded with foam and fabric (polyester) |
Operating conditions |
T: 10°C ÷ 50°C, RH: 5% ÷ 90% (non-condensing) |
Storing temperature |
0°C ÷ +55°C |
Power supply: Input | maximal power consumption |
115VAC or 230VAC | 90W (without heated hose) |
Battery: type | work time | charging time |
Lead-acid, rechargeable 12V / 2.2Ah | 7h | 14h |
Data memory: size | number of results |
32kB | 30 reports + 10 banks (1024 sets of data) |
Display |
Graphical LCD 128 x 128, with variable contrast and backlighting |
Printer |
High-speed dot matrix, graphic printer for 57mm normal paper |
Analogue outputs (optional) |
Two current (0/4÷20mA) or voltage (0÷10V) outputs |
Gas pump | gas flow |
Diaphragm, max 2l/min (with automatic flow control) | 90l/h (1.5l/min) |
Purging pump for CO sensor |
Diaphragm, max 1.5l/min |
Communication interface with PC computer |
RS-232C |
Gas filtering |
Heated filter included in the heated hose |
|
Built-in final filter (behind the gas dryer) with replaceable insert |
|
|
|
|
Measurements of gas components |
|
O2 – (EC) |
20.95% |
O2 – (EC, PP) |
20.95%, 25%, 100% |
CO – (EC) |
20 000ppm, 10% |
CO – (EC, H2 comp) |
2000ppm |
CO – (NDIR) |
10%, 100% |
CO2 – (NDIR) |
25%, 50%, 100% |
CxHy – (NDIR) |
5%, 25%, 100% |
NO – (EC) |
5000ppm |
NO2 – (EC) |
1000ppm |
SO2 – (EC) |
5000ppm |
H2S – (EC) |
1000ppm |
H2 – (EC) |
2000ppm, 20 000ppm |
NH3 – (EC) |
1000ppm |
CL2 - (EC) |
250ppm |
HCl - (EC) |
50ppm |
|
|
|
|
EC - Electrochemical sensor
|
|
PP - Partial pressure |
|
NDIR - Non dispersive infrared sensor |
|
